*คุณสมบัติ*

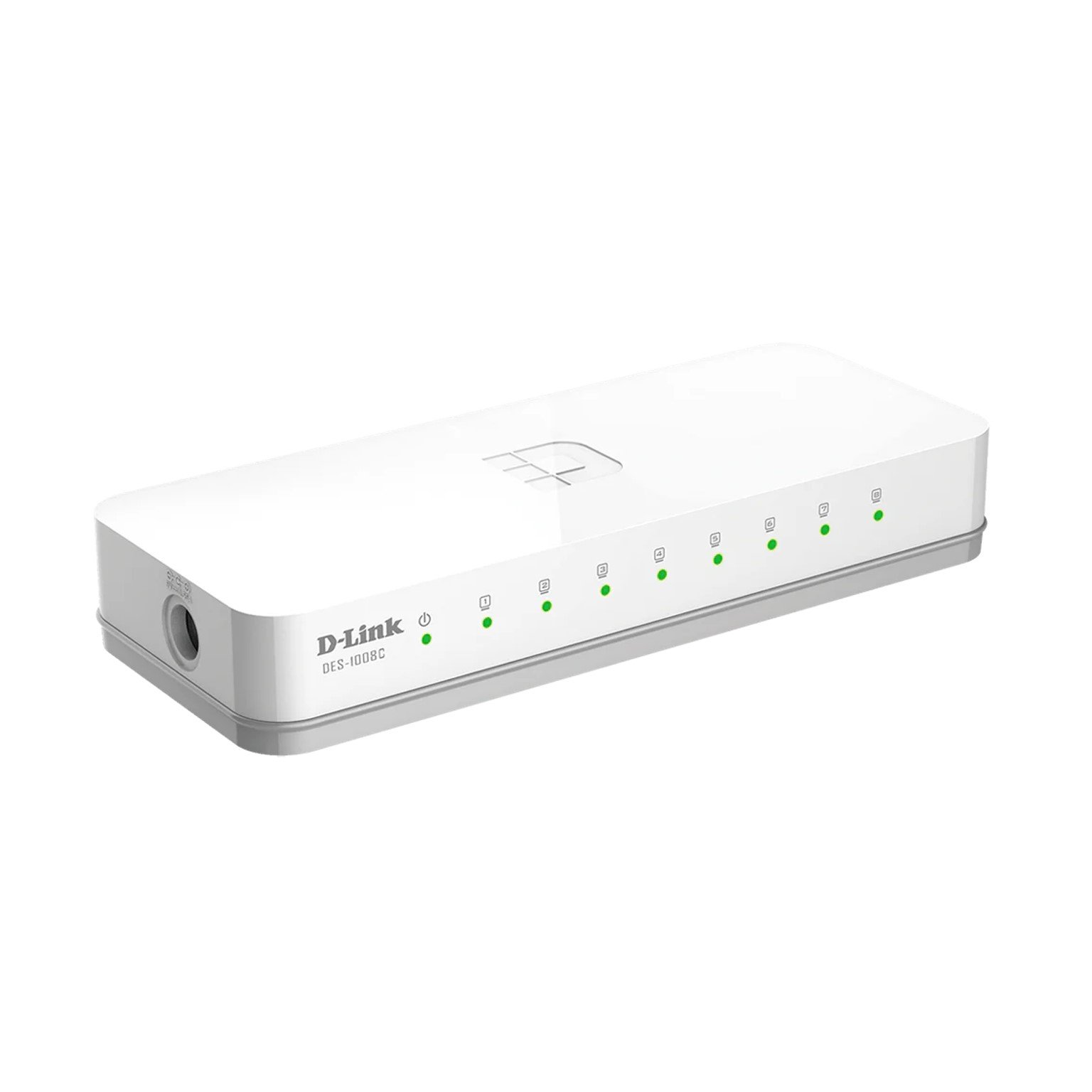

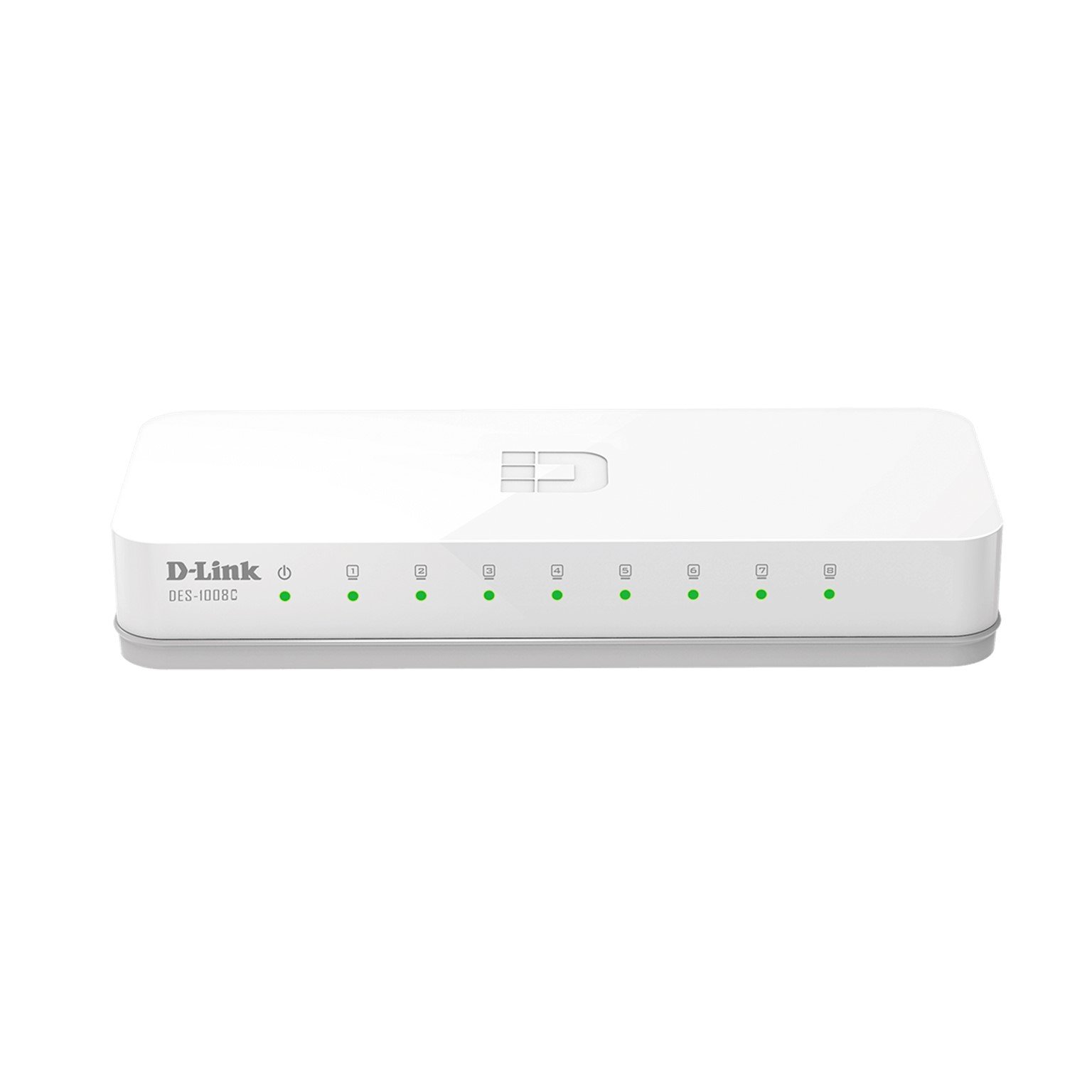

Brand : D-LINK
Model : DES-1008C

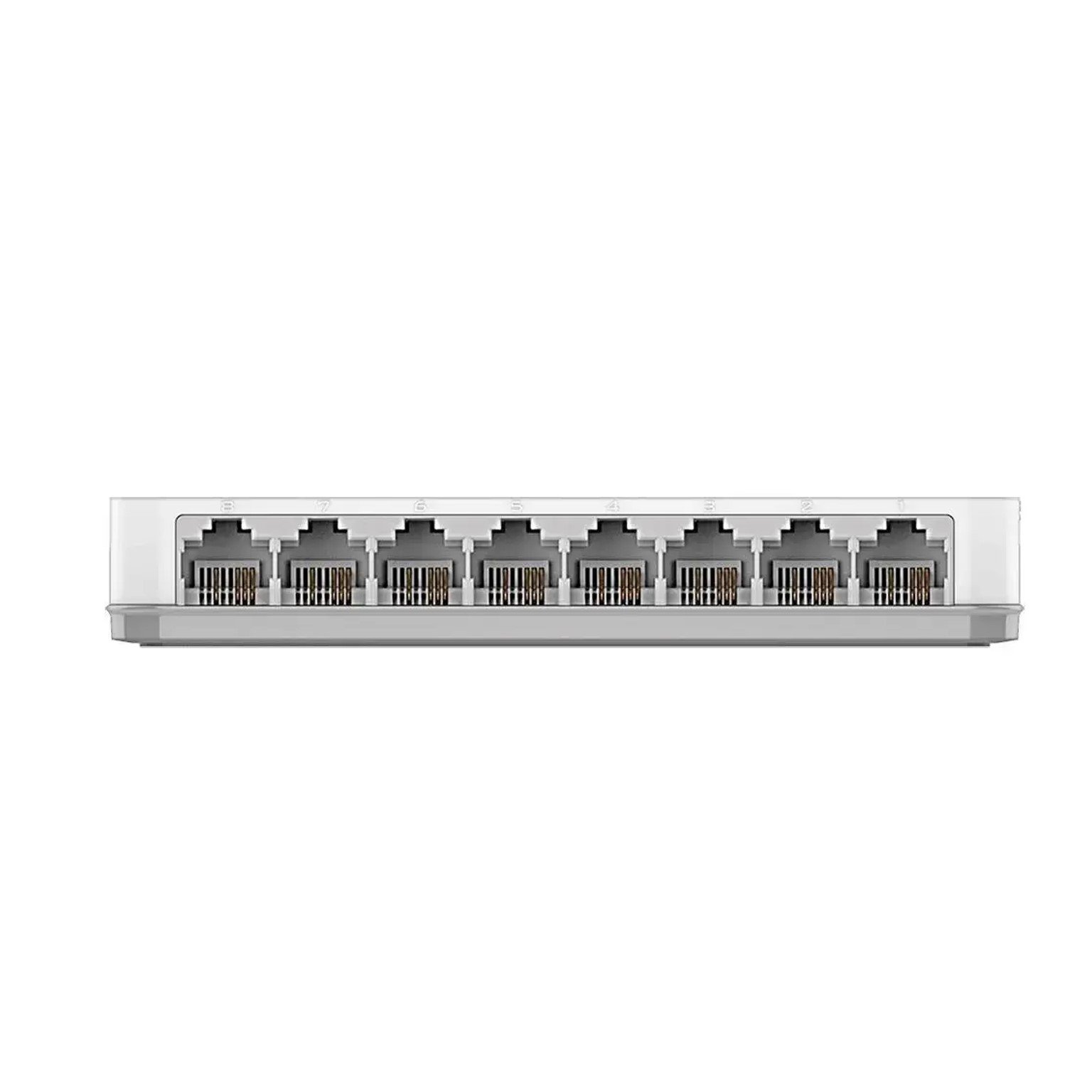

Network Interface : 10/100 Mbps 8 LAN ports
Standards and Protocols
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Switching Capacity : 1.6 Gbps switching fabric
Transmission Method : Store-and-forward
MAC Address Table : 2,000
Forwarding Rate
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
LED Indicators
Per port : Link/Activity/Speed
Per device : Power
MTBF : 1,579,582 hours
Power Supply
DC 5 V / 0.55 A
DC jack: Located on side
Power Consumption
Power On (Standby) : 0.55 watts
Maximum : 1.55 watts
Environment
Temperature
Operating : 0 to 40 °C (32 to 104 °F)
Storage : -40 to 70 °C (-40 to 158 °F)
Humidity
Operating : 10% to 90% non-condensing
Storage : 5% to 95% non-condensing
Certifications
CE Class B
CE (LVD 2006/95/EC)
- : Advanced Features
- Auto MDI/MDIX crossover for all ports
- Secure store-and-forward switching scheme
- Full/half-duplex for Ethernet/Fast Ethernet speeds
- Supports 2,048 byte jumbo frames
- Back pressure at half-duplex operation
- Wire-speed reception and transmission
- Store and-Forward switching method
- Auto-negotiation for each port
- EEE compliant IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3az EEE
- IEEE 802.3x flow control
Package Dimension (W x D x H) : 6.00 x 14.00 x 9.00 cm
Gross Weight : 0.20
